PuduBot 2
Universal Delivery Robot
PuduBot 2 is committed to intelligent deliveries in all scenarios, promoting the application of service robots and accelerating the overall robot development with higher performance.
Operating Modes
PuduBot 2 offers versatile operating modes to adapt to different delivery scenarios and customer needs.
Delivery Mode
Cruise Mode
Direct Mode
Dish Return Mode
Birthday Mode

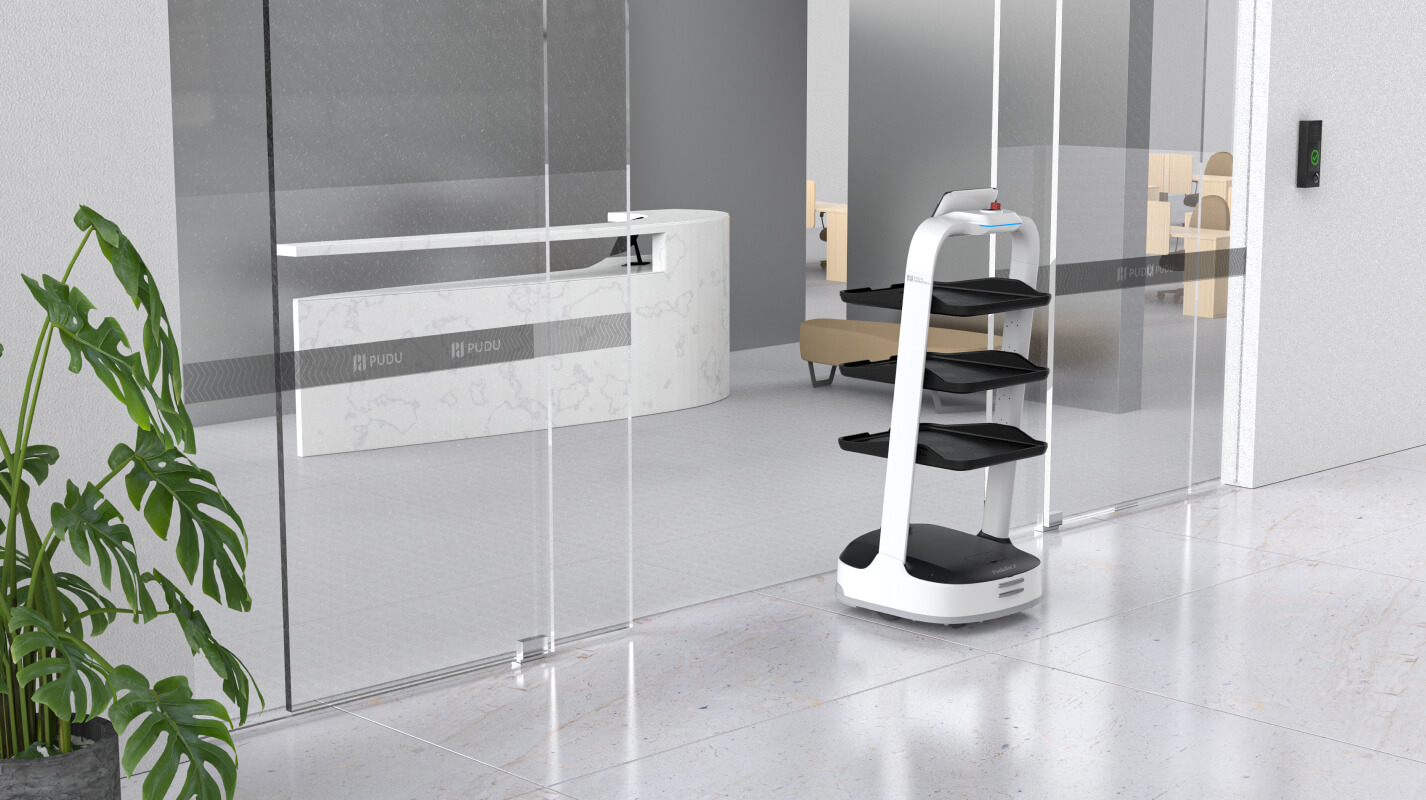

Precise Environmental Navigation
PuduBot 2's RGBD cameras and lidar provide strong 3D perception, quickly identifying obstacles in its path. It will stop in its path to avoid bumping into obstacles within 0.5s, ensuring customer safety.

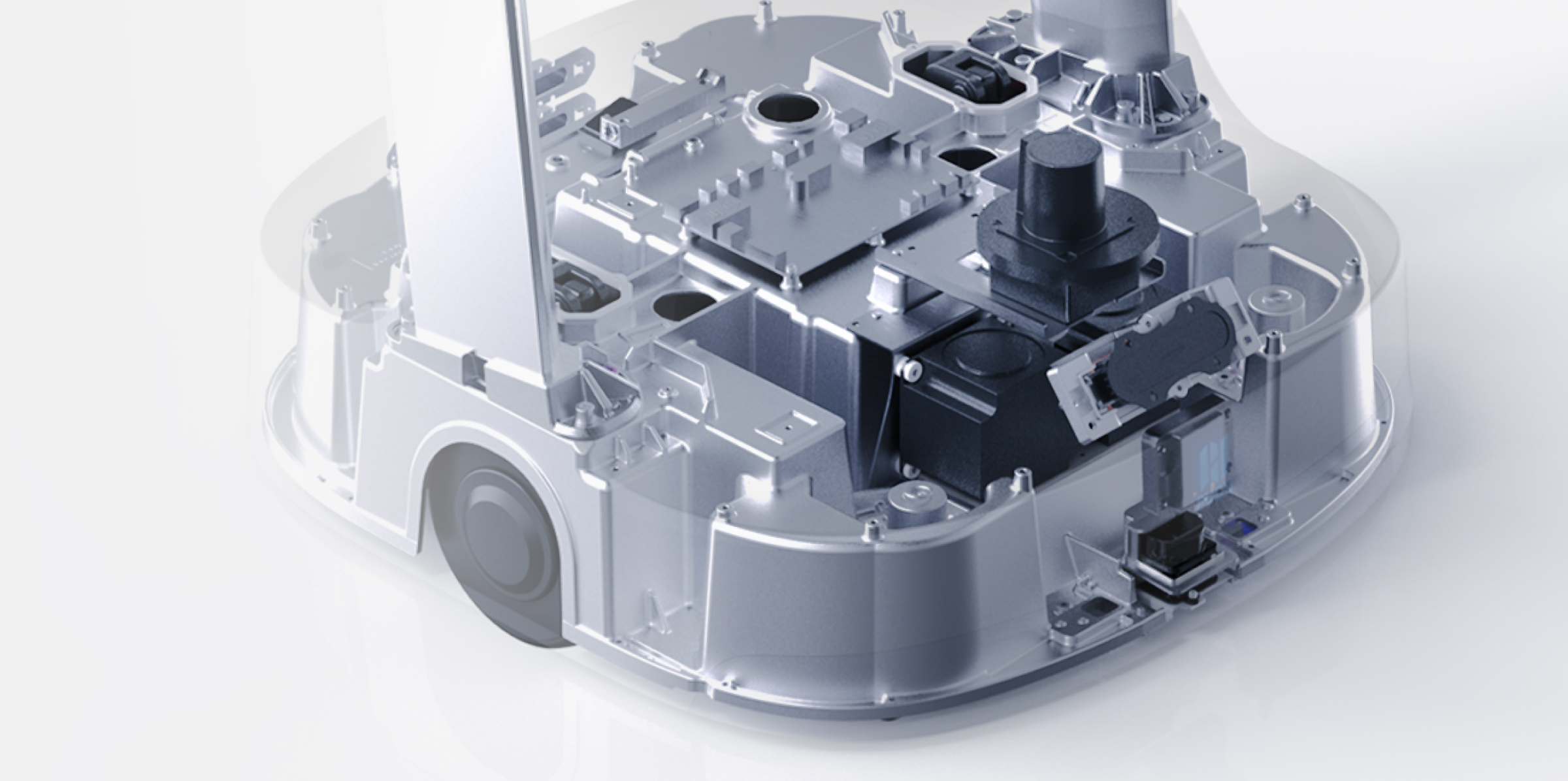

Self-leveling Linkage Suspension
PuduBot's stability is guaranteed across any type of floor with its linkage suspension: adjusting for bumps up to 5 mm tall and ensuring delivery of dishes with no spillage.
Dual Lidar Perception
PuduBot 2's dual lidars provide it with 360° vision, seeing obstacles both in front of it and on the ground. The lidars detect obstacles in front of it within 0.8 meters and locate objects on the ground with at least 8 cm height.

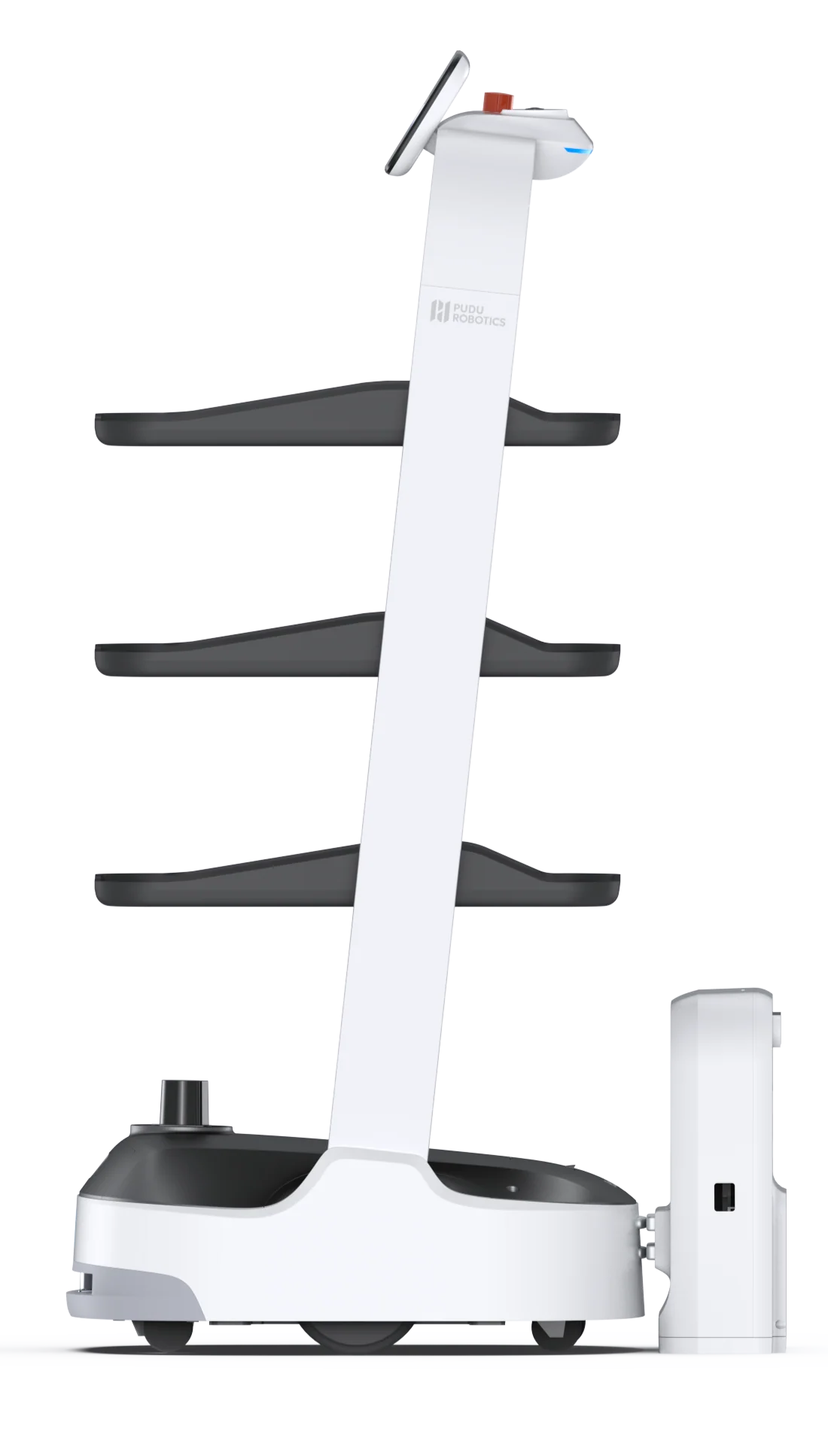

High Performance Battery and Charging
PuduBot 2's battery lasts for 10 h ~ 24 h, easily covering the entirety of a day. Once the battery level is low, PuduBot 2 can automatically go to a nearby charging station to recharge.

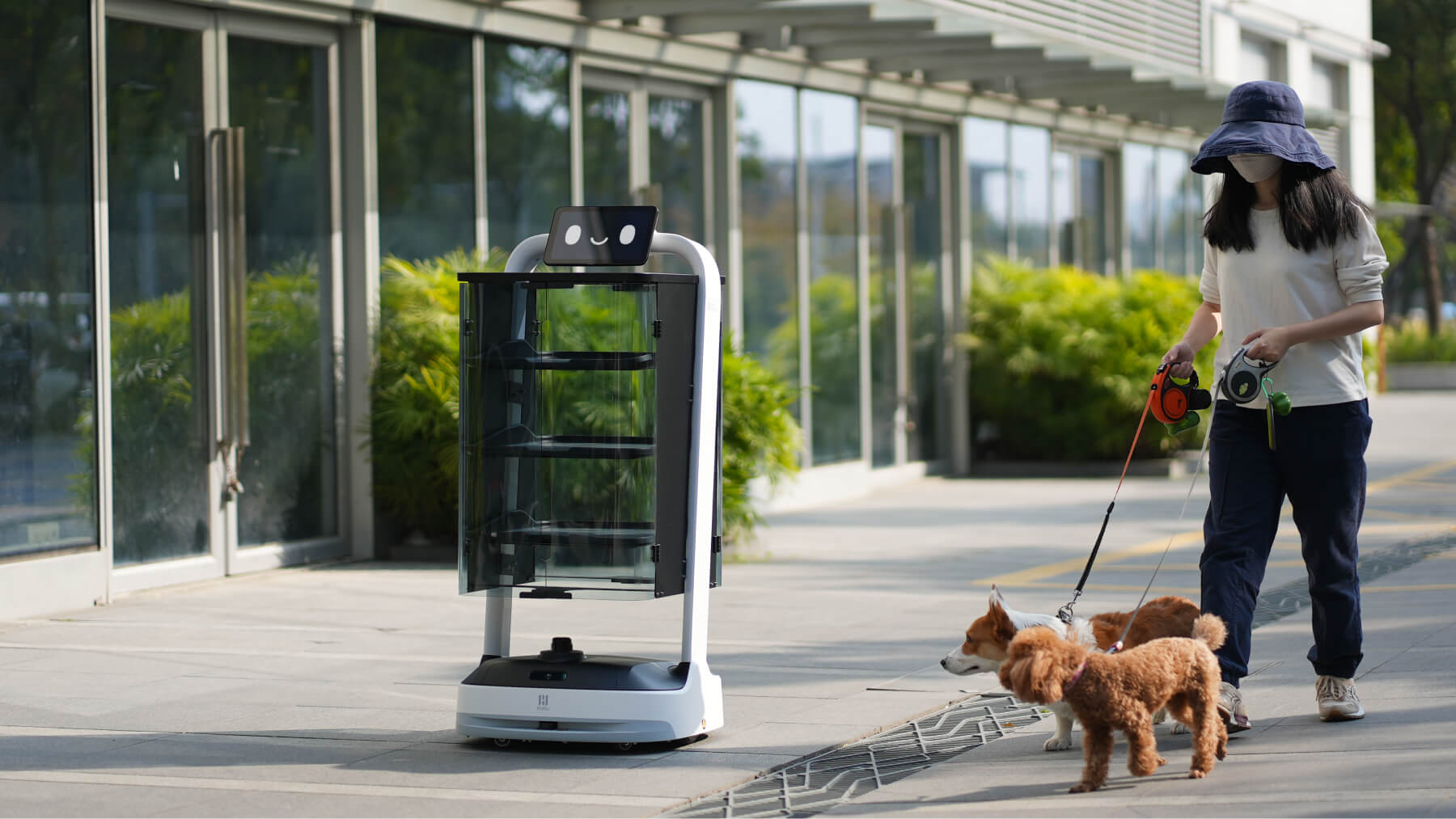

Enclosed Machine Design
PuduBot 2 boasts a protection rating of IP42, protecting itself from dust and water from daily use.

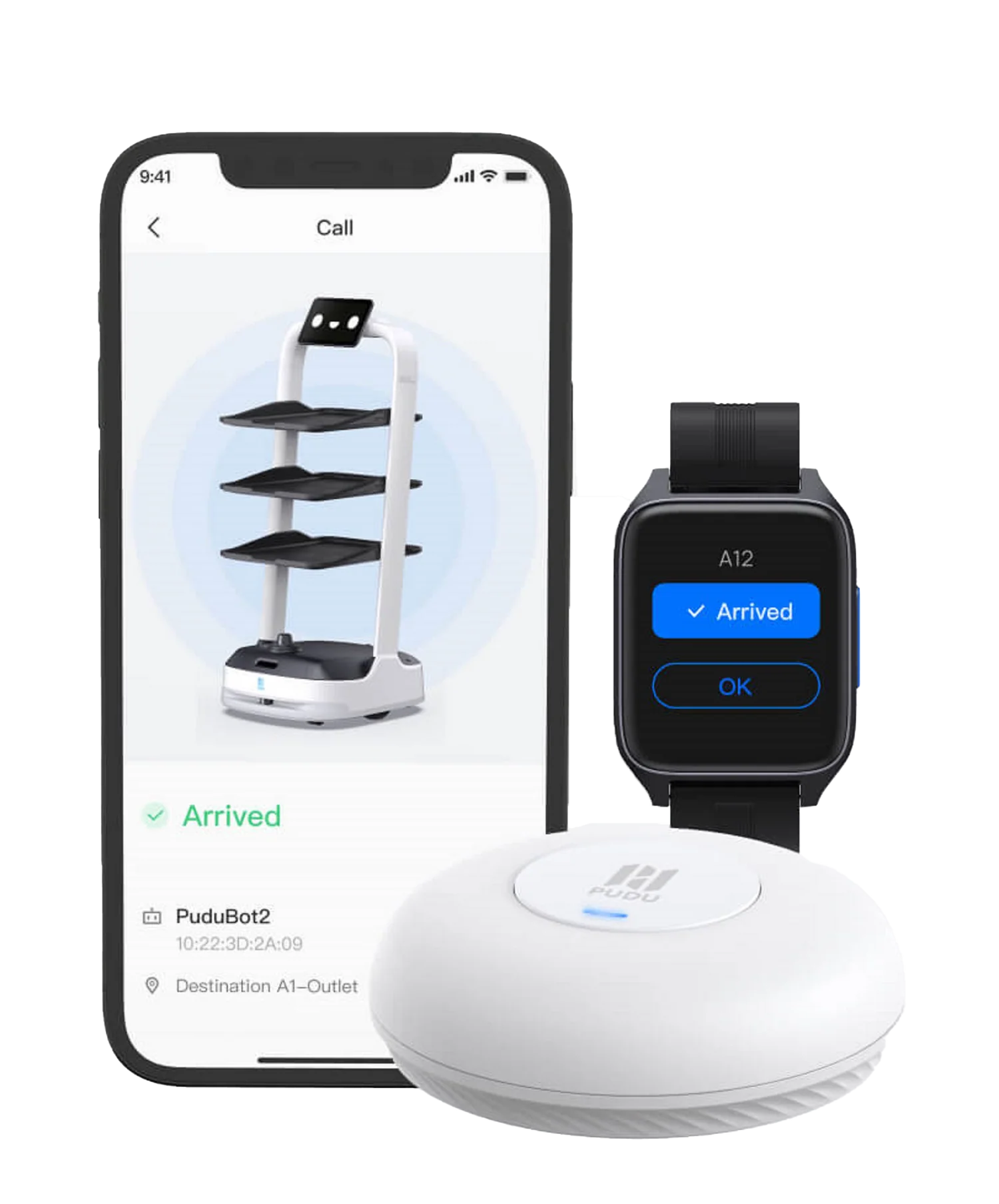

Calling and Notification
Call PuduBot 2 over with Pudu Pager and give commands remotely using Pudu Watch and Pudu Link.
PuduBot 2 Accessories
Enhance your PuduBot 2 with a range of accessories designed to extend functionality and improve operations.

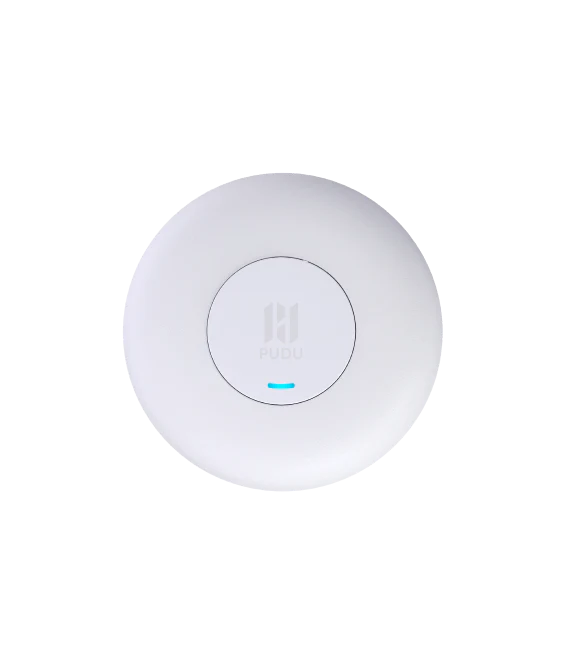

Pudu Pager

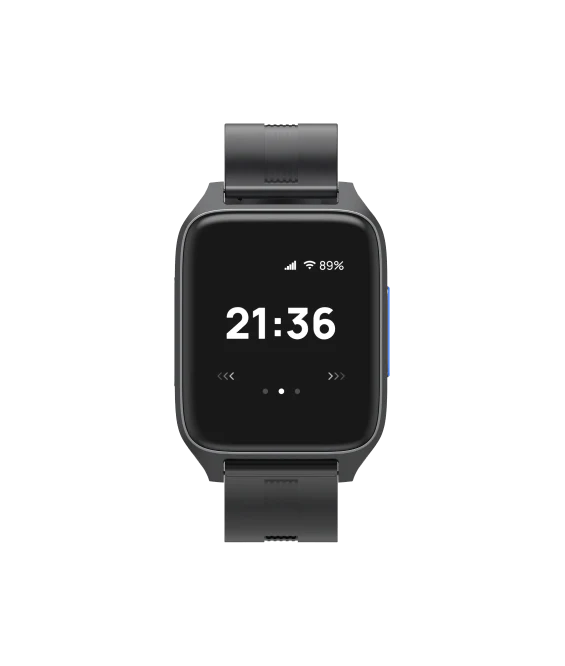

Pudu Watch
Pudu Charging Station

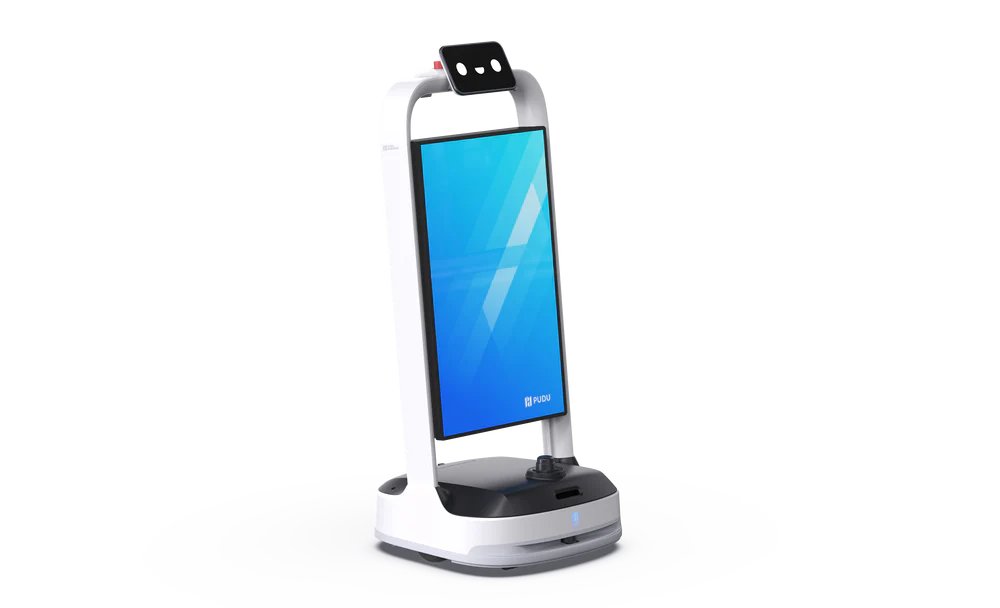

31.5" Ad Screen

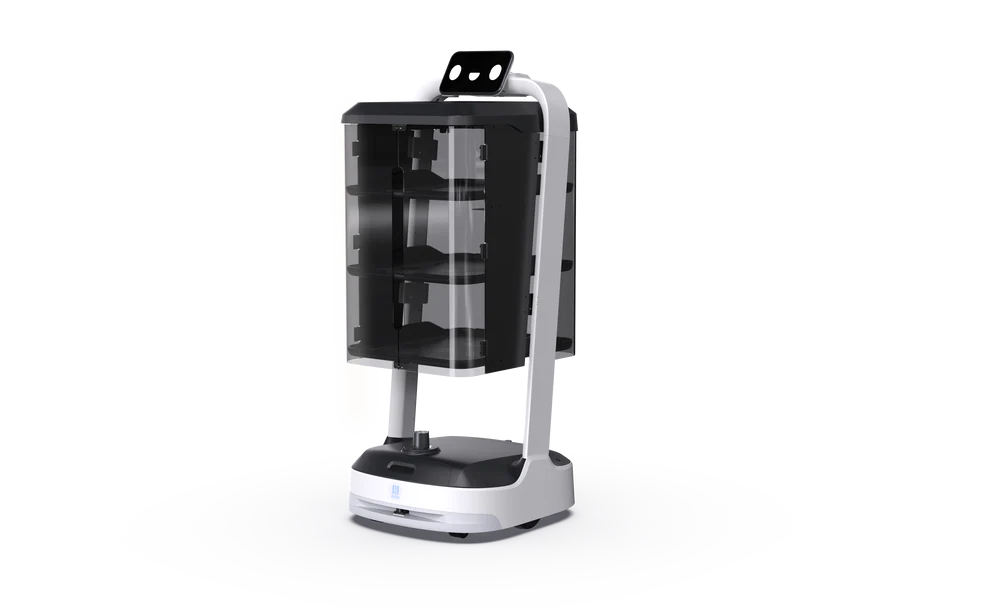

Dish Cover

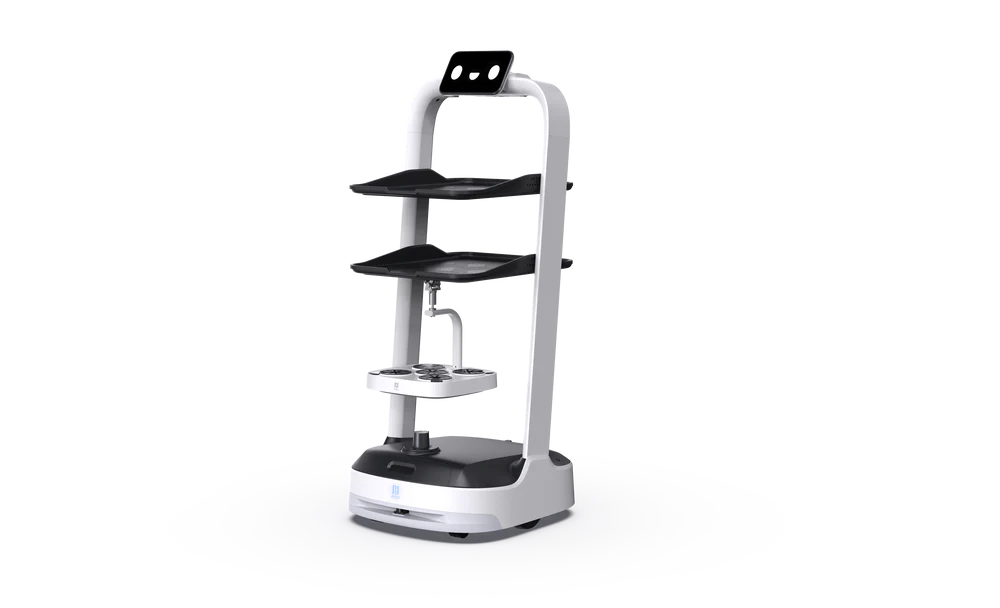

Cup Holder

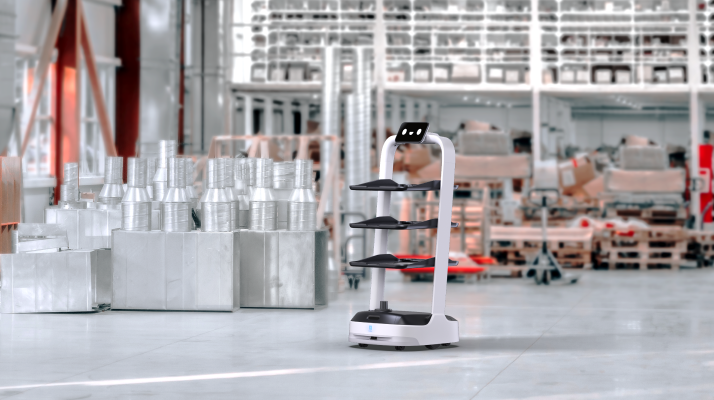

Product Overview
Dimensions
580 × 535 × 1290 mm
(22.8 × 21.1 × 50.8 in)
Machine Weight
39 kg (86 lbs)
Tray Size
500 × 432 mm
(19.7 × 17.0 in)
Single Tray Load
Maximum 13 kg (28.7 lbs)
Maximum Loads
40 kg (88 lbs)
Battery Life
10 ~ 24 hours
Charging Time
3 hours
Path Clearance
80 cm (31.5 in)
Cruise Speed
0.5 ~ 1.2 m/s
(1.6 ~ 3.9 ft/s)
Obstacle Negotiation Height
10 mm (0.4 in)
Climbing Angle
≤ 5°
Positioning Method
PUDU VSLAM+ & Laser SLAM
Dispatching
Maximum 20 Robots
Charging
Wire / Automatic
Display
10.1-inch LCD Screen
Protection Rating
IP42
See PuduBot 2 in Action
Watch how PuduBot 2 delivers intelligent service across various environments.
PUDUBOT 2
Classic Delivery Robot
Category: Commercial Delivery Robots
Functions: delivery
MSRP: $10,995
Warranty: 1 year warranty
Technical Specifications
| machine Dimensions | 570*550*1290 mm |
| machine Weight | 55 kg |
| battery Capacity | 25.6 Ah |
| charging Time | 4.5 h |
| run Time | 11 h (none load) |
| carrying Capacity | 40 kg (10 kg/tray) |
| path Clearance | 65 cm |
| cruise Speed | 0.2-1.2 m/s |
| navigation | Lidar and visual integrated SLAM positioning |
| screen | 10.1-inch LCD screen |
| tray Dimensions | 410*500 mm |
| height Between Trays | from top to bottom: 230 mm/200 mm/200 mm/180 mm |
| sensors | 3*RGBD, 1*lidar, 2*front-view camera |
| trays Detection | visual detection(fish-eye camera) |
| dish Recognition | true |
| color | white, black |
| ambient Lighting | true |
| crosswalk Caution | true |
| versatile Accessories | true |
Features & Capabilities
- Mobile Marketing Ambassador
- Proficient in Various Delivery Modes
- VSLAM+ for Rapid Deployment Across Vast Venues
- Omni-Sense Safety - Obstacles Detected, Journey Perfected
- Enhanced Multimodal Interaction for Delightful Encounters
- Aesthetic Design inspired by cats
Pricing Information
Contact Us for pricing details
Product Images
Use Cases & Applications
- Food & Beverage
- Education
- Retail
- Office Building
- Hospitality
- Health Care
- Manufacturing
Documentation
Contact Us for technical documentation
